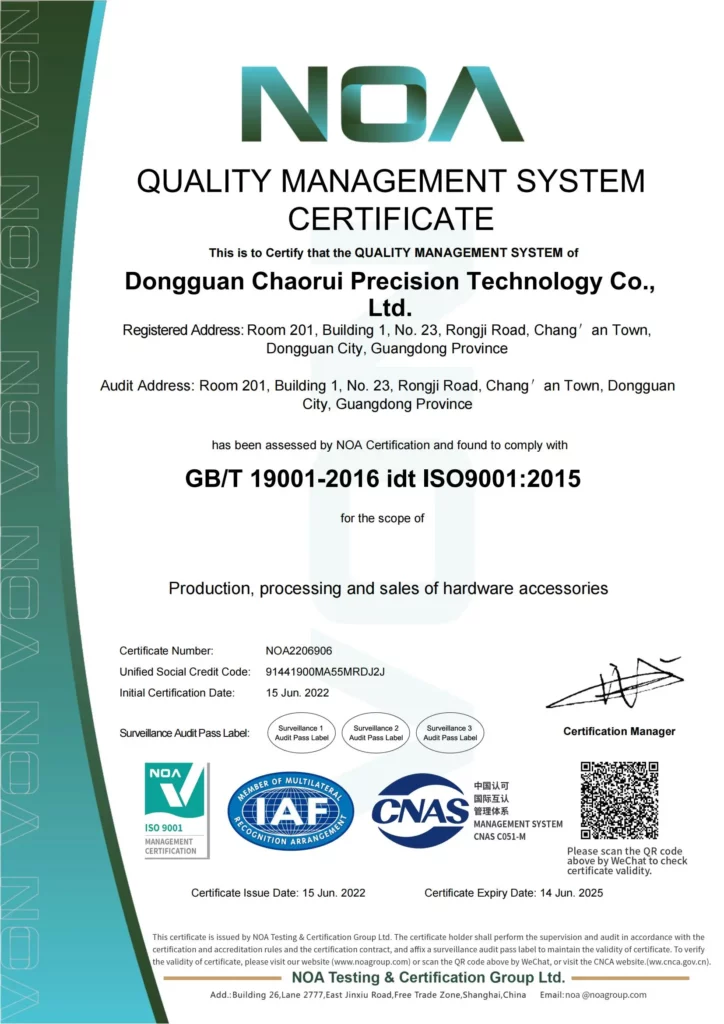

ISO 9001 & IATF 16949 CERTIFIED
24h Quote · Free DFM/Moldflow Feedback · CMM Inspection Reports · Global Shipping
Get Instant Quote

CAD Ready: STEP, IGES, STL supported

Engineer-Reviewed RFQ · DFM Review · CMM Planning · FAI and PPAP Support

Injection Molding, 5-Axis CNC & Swiss CNC Machining in China for Engineer-Reviewed RFQs

Chinese engineer reviewing CMM report and approval documents for precision manufacturing
CMM Review, FAI, PPAP, and Material Documentation

Upload CAD or drawings for process-fit review across injection molding, 5-axis CNC, and Swiss CNC machining, including DFM feedback, tolerance feasibility screening, CMM inspection planning, FAI and PPAP support, and prototype-to-production transfer planning.

Engineering Control: Typical pre-quote checks include CTQ feature review, datum logic, material grade confirmation, and tolerance feasibility. Deliverables are defined by part geometry, industry expectations, and program stage.

Core Manufacturing Routes

3

Injection molding for production plastic parts, 5-axis CNC for multi-face geometry, and Swiss CNC for precision components.

Engineering Review Response

24h

24-hour response for CAD-ready RFQs with quote, DFM comments, and process-fit screening.

Quality Documents & Approval Support

ISO 9001 · IATF 16949

Supports PPAP-oriented automotive workflows.

  • Inspection: CMM & FAI Reports
  • Approval: PPAP Support (Level 1-3)
  • Traceability: Material Certificates

Engineer-Reviewed Manufacturing Routes for Injection Molding, 5-Axis CNC, and Swiss CNC

Our engineering review process is built around three manufacturing routes only: injection molding, 5-axis CNC machining, and Swiss CNC machining. Before quote release, we review part geometry, material grade, target tolerance, annual volume, and required approval documents to confirm the best-fit process from prototype through production.

For OEM and Tier-1 programs, validation steps are defined before tooling release or production launch based on CTQ features, material requirements, and customer approval expectations. Depending on program requirements, our team combines DFM feedback, tolerance review, and inspection planning to define the required quality documents, so that FAI, PPAP support, and material certificates match the industry and customer approval requirements defined for the program.

Injection Molding for Production Plastic Parts and Tooling Programs

  • DFM review and Moldflow support for tooling decisions
  • Prototype-to-production tooling strategies
  • CTQ review and approval-document planning

5-Axis CNC for Multi-Face Precision Components and Complex Geometries

  • Single-setup machining for complex multi-face geometry
  • Datum review, tool access check, and inspection planning
  • CMM verification of critical features

Swiss CNC for Small-Diameter Tight-Tolerance Turned Parts

  • Best suited for small-diameter pins, shafts, and connectors with repeat demand
  • Runout, burr condition, and key dimensions verification
  • PPAP support for controlled production approval
Process Best-fit programs Typical review outputs and approval documents
Injection Molding Production plastic housings, enclosures, and repeat-run molded parts DFM review, Moldflow support, FAI, Material certs
5-Axis CNC Multi-face precision components, tight-tolerance aerospace/medical parts CMM inspection reports, FAI, Material certs
Swiss CNC Small-diameter pins, shafts, connectors PPAP support, FAI, Runout & tolerance verification

How to Choose Between Injection Molding, 5-Axis CNC, and Swiss CNC

Engineer-guided process selection based on part geometry, material, production volume, and critical tolerances.

When Injection Molding Is the Right Choice

When is injection molding the right choice?

Injection molding is typically selected for repeat plastic parts when tooling investment is justified by annual volume and part geometry is shaped by resin flow, wall thickness control, and mold design constraints.

  • Typical part family: Repeat plastic housings, enclosures, and structural molded parts.
  • Decision trigger: Tooling ROI justified by scale; specific resin mechanical properties required.
  • CTQ examples: Cavity consistency, sink mark control, parting line mismatch, wall thickness uniformity.
  • Common not-fit case: Low-volume prototyping or extreme undercuts, where tooling investment or mold complexity does not match program demand.

When 5-Axis CNC Is the Right Choice

When is 5-axis machining the right choice?

5-axis CNC is often selected for multi-face metal or engineering plastic parts that require fewer setups. By consolidating operations, it helps reduce datum transfer error and supports controlled positional accuracy across CMM-verifiable critical features.

  • Typical part family: Aerospace manifolds, medical device components, and multi-face precision parts.
  • Decision trigger: Multi-face features requiring single-setup accuracy and complex spatial geometry.
  • CTQ examples: True position across multiple planes, strict perpendicularity, surface finish.
  • Common not-fit case: Simple 2D profiles that can be more economically routed on standard 3-axis mills.

When Swiss CNC Is the Right Choice

When is Swiss CNC the right choice?

Swiss CNC is typically selected for slender, small-diameter, tight-tolerance turned parts. The sliding headstock supports the workpiece close to the cutting zone, helping control straightness, runout, and burr formation in repeat production.

  • Typical part family: Small-diameter shafts, precision pins, sleeves, electrical contacts.
  • Decision trigger: Length-to-diameter ratios above roughly 3:1 and burr-sensitive micro-features often favor Swiss CNC.
  • CTQ examples: Strict runout control, outer diameter (OD) tolerance, straightness, micro-burrs.
  • Common not-fit case: Large-diameter heavy turning or parts with extreme off-center milling limits where Swiss kinematics are unsuitable.

What We Review Before Releasing a Quote

Every RFQ is reviewed by CNC and mold engineers before quote release. Quote review starts after we receive the 3D CAD model, 2D drawing, material specification, annual volume target, and any approval-document requirements. We confirm part geometry, drawing callouts, CTQ features, and the best-fit manufacturing route upfront.

DFM_Review_CTQ_Markup.pdf
Chinese engineer reviewing CTQ balloon drawing and DFM markup before quote
Drawing callouts and CTQ balloon mapping example
01

CAD, Drawing, and Input Completeness Review

We begin with a review of the submitted CAD package. Our team verifies 3D models (STEP/IGES) and 2D drawings to confirm geometry definition, feature clarity, datum logic, and revision status before quoting.

02

CTQ Features and Tolerance Feasibility

For CTQ features, we assess whether the requested tolerance is realistic for the process. This determines feasibility and whether verification requires CMM probing, first article inspection, or process-specific dimensional checks.

03

Material, Volume, and Approval Document Requirements

We align material grade and annual volume with the recommended production route and inspection plan. We also define the approval package (FAI, PPAP, material certs) based on specific program risk.

Example CTQ Review Result Before Quote Release

Before quote release, we turn the CAD model and drawing review into a documented engineering review result. This helps your team see which features drive process risk, which tolerances need feasibility checks, and the recommended approval documents.

RFQ inputs received

3D CAD model (STEP/IGES), 2D drawing revision, material callout, annual volume target, and CTQ notes.

CTQ features flagged

True position on datum-related holes, thin-wall flatness, and cosmetic edge condition on the sealing surface.

Recommended process route

5-axis CNC is recommended for prototype validation because geometry is under review; injection molding becomes the preferred route after design and volume are frozen.

Risk notes

Thin-wall deformation risk during machining, datum-related tolerance stack-up across multi-face features, and cosmetic edge control requirements.

Recommended inspection method

CMM probing for datum-related hole position, flatness verification on thin-wall areas, and visual inspection of cosmetic-edge condition.

Recommended approval package

Dimensional report, material certificate, first article inspection (FAI) record, and PPAP support where required at production release.

CTQ_Review_Markup_Sample.pdf
CTQ ballooned drawing with tolerance callouts and pre-quote review notes
Sample CTQ review markup with ballooned features, tolerance callouts, and pre-quote notes.

Process Screening Table: Best-Fit Parts, CTQ, and Not-Fit Cases

This table shows how we screen RFQs against our core manufacturing routes before confirming process fit and quote readiness. We evaluate your part geometry, material, production volume, CTQ requirements, and approval-document needs to ensure technical alignment.

Manufacturing Process Best-fit parts Typical CTQ Not-fit trigger Typical review outputs and approval documents

Injection Molding

Plastic housings, enclosures, and structural molded parts, from prototype validation to production tooling release. Cavity-to-cavity consistency, shrinkage control, warpage risk, and cosmetic surface finish requirements. Ultra-low volume without tooling budget; extreme undercuts that exceed program value. Typical: DFM review, Moldflow support, FAI, and material certs (per project requirements).

5-Axis CNC

Multi-face aerospace manifolds, medical device components, and tight-tolerance structural parts. True position across multiple faces, controlled datum transfer, tool-access-driven geometry, and tight tolerance requirements. Simple 2D profiles; low-value, loose-tolerance brackets better suited for 3-axis mills. Typical: CMM inspection reports, FAI, and material certs (per project requirements).

Swiss CNC

Small-diameter shafts, precision pins, sleeves, and connector-type turned parts. Runout, straightness, burr condition, and lot-to-lot dimensional consistency in repeat production. Large-diameter heavy turning or parts with extreme off-center milling limits. Typical: PPAP support, FAI, and runout verification (where required by the program).

When a Different Manufacturing Route Is the Better Choice

Before quote release, we screen routing decisions against part geometry, annual volume, feature type, and tooling justification. This ensures we avoid unnecessary tooling costs and redirect parts to a more appropriate process when the primary routes are not the best fit.

01

When Injection Molding Is Not the Right Process Route

Not-fit case

Low annual volume, unstable part design, or tooling costs that cannot be justified by expected production demand.

Why

Tooling cost and mold lead time can outweigh the cost-per-part benefit when the design is still changing or the volume is too low to recover the initial tooling investment.

Better route

3D printing for geometry validation, vacuum casting for appearance samples, or rapid tooling for bridge production.

02

When 5-Axis CNC Is Not the Right Process Route

Not-fit case

Simple 2D profiles, loose-tolerance brackets, or parts that do not require multi-face machining in a single setup.

Why

Higher machine rates and programming time do not add value when the geometry can be produced with a simpler, more economical 3-axis process.

Better route

Sheet metal fabrication for flat brackets, or a simpler machining route when multi-face positional control is not required.

03

When Swiss CNC Is Not the Right Process Route

Not-fit case

Large-diameter parts, short rigid components, or parts dominated by heavy off-center milling requirements.

Why

Swiss machining is optimized for small-diameter, slender parts requiring runout control, rather than larger parts or components with low feature density.

Better route

5-axis CNC for complex multi-face geometry, or a conventional turning route when guide-bushing support is not the main advantage.

Project Evidence by Process: CTQ Control, Validation Method, and Document Output

Real project examples showing CTQ control methods, validation steps, and document outputs such as FAI reports, CMM inspection reports, and material certificates. The document outputs shown here are example deliverables and are defined by part risk, customer requirements, and program stage.

Thin-wall plastic housing sample with validation report and FAI evidence
T1 / FAI Snippet

Thin-Wall Housing Validation

  • Part family: Thin-wall plastic housing
  • Material: PP, PC/ABS, and production thermoplastics
  • CTQ: Warpage control, cavity consistency
  • Control method: DFM review, T1 trial adjustment, and dimensional verification
  • Document output: First article inspection report with approval records
Multi-face aluminum housing with fixture setup and CMM verification evidence
Fixture & CMM Screen

Multi-Face Housing Verification

  • Part family: Multi-face aluminum housing
  • Material: Al 6061-T6, Al 7075
  • CTQ: True position and datum-related location control
  • Control method: Fixture review, setup validation, and CMM probing
  • Document output: CMM inspection report with coordinate data
Small-diameter shaft sample with runout verification and straightness control evidence
In-Process Gaging

Small-Diameter Turned Part Verification

  • Part family: Small-diameter shaft / connector pin
  • Material: Stainless Steel, Brass
  • CTQ: Runout, burr condition, straightness
  • Control method: Guide-bushing setup, in-process gaging
  • Document output: Runout verification records and FAI report

Quality Documents and Program-Defined Approval Deliverables

Quality requirements are defined before production routing is confirmed. Inspection protocols and document outputs are matched to program stage, CTQ risk, industry standards, and customer submission levels.

Inspection and Approval Documents by Program Requirement

Required inspection and approval documents are defined by the program and may range from a certificate of conformity (CoC) to first article inspection records and PPAP support files.

Typical Deliverables:
  • CMM Inspection Reports
  • Raw Material Certifications
  • Certificate of Conformity (CoC)
  • First Article Inspection Records

Revision Control and Production Traceability

Engineering changes are controlled through revision locking and controlled document release. Production records are linked to raw material lots, machine setups, and inspection data where required.

Management Scope:
  • Drawing revision locking before production
  • Raw material lot and heat number tracking
  • Machine and setup parameter archiving
  • Shipment batch and inspection linking

What Is Defined by Program, Industry, and Approval Level

Validation steps and document package depth are matched to the program stage, customer submission level, and specific industry requirements defined during the DFM review.

Industry & Program Triggers:
  • Automotive: PPAP support by submission level
  • Aerospace: AS9102-format FAI where required
  • Medical: Program-specific material control
  • Prototyping: Typical CMM and Material Certs

Typical Approval Documents and Validation Scope by Program Type

Approval documents are not fixed across all programs. The table below shows how document scope is matched to program type, CTQ risk, and customer submission levels. We provide a customized typical document package and validation workflow defined during the engineering review stage.

Program Type Typical Project Stage Typical document package Validation focus Typical trigger for documentation level
Prototype Concept validation, early engineering sample, and fit-check builds. CMM inspection results, material certificate, and first article records where required. Geometry verification, tolerance feasibility, surface condition, and assembly fit. First sample approval, design freeze review, and pre-production feasibility.
Automotive PPAP submission, pilot run validation, and SOP preparation. PPAP support files, dimensional results, material certificate, CoC, and FAI records. CTQ stability, cavity-to-cavity consistency, and production batch traceability. OEM or Tier-1 submission requirements and the customer-defined PPAP level.
Aerospace First article approval and low-volume precision production. AS9102-format FAI where required, material traceability, CMM inspection report, and CoC. True position, revision control, and traceable material and inspection records. Drawing-controlled features, first article requirements, and lot-level traceability needs.
Medical Engineering verification, controlled pilot build, and repeat controlled production. Material certificate, first article records, and lot-level traceability records. Burr condition, critical feature verification, cosmetic control, and material documentation. Customer-defined documentation requirements and function-critical feature control.
Precision machined parts and molded samples in modern Chinese manufacturing facility

About SPI · Capability Snapshot

Precision CNC Machining and Export Mold Manufacturing in Dongguan, China

From our Dongguan facility, SPI supplies precision CNC machining, export injection molds, and rapid tooling for overseas OEM and Tier-1 manufacturing programs. The same engineering and quality workflow supports prototype, pilot, and recurring production programs with documented inspection planning and CMM verification.

For aerospace brackets, medical device components, and robotic assemblies, our engineers perform a thorough material review and tolerance feasibility screening. This ensures every shipment remains aligned with the approved drawing and inspection requirements across repeat production lots.

View Company Profile & Facilities
Experience
20+
Years supporting export CNC machining and mold manufacturing programs for overseas customers.
Engineering Team
50+
Engineers and technicians across CNC process, tooling design, and quality coordination.
Global Customers
300+
Serving Tier-1 automotive, medical, and aerospace suppliers across North America and Europe.
Parts Per Year
1M+
Proven capacity for recurring production programs and approved repeat shipping lots.

CTQ Control Workflow for Tight-Tolerance and Validation-Driven Programs

Critical features are reviewed against the drawing, linked to the inspection plan, and monitored through setup verification, in-process checks, and approval-stage validation. We replace abstract promises with a documented control chain from initial setup through repeat production.

01

Tolerance Control, Setup Verification, and Inspection Planning

Tolerance review covers datum strategy, fixture alignment, and setup stability. Each setup is checked against the specified datum structure to reduce transfer-related dimensional risk before release to production.

  • Dedicated inspection planning for critical features
  • Custom fixture validation and datum alignment
  • Documented in-process checks at the machine
02

DFM Feedback Before Manufacturing Release

Manufacturing is not released until the CAD model and drawing package are reviewed for process risk. Our engineering team identifies risks such as tool reach limits, draft angle issues, and thin-wall instability prior to tooling or machining.

  • DFM feedback prior to RFQ and production approval
  • Toolpath and Moldflow simulation analysis per project needs
  • Direct technical communication in English and Japanese
03

Prototype-to-Production Transfer Control

Moving from prototype quantities to pilot runs and recurring production requires process locking. We use a structured transfer framework to maintain dimensional and document continuity.

  • Strict First Article Inspection (FAI) verification
  • Controlled pilot run for parameter locking
  • Controlled and documented serial production handoff

Industries, Approval Expectations, and Matching Process Routes

Manufacturing routes, inspection steps, and approval documents are defined according to the functional and compliance requirements of each industry sector. We ensure technical alignment between part design and industry-specific validation protocols.

Aerospace and Defense

  • Common part families: Multi-face brackets, structural nodes, housings, and mounting components.
  • Critical approval expectations: AS9102-format FAI where required, material traceability, and true position verification.
  • Matching process routes: 5-Axis CNC Machining.

Robotics and Automation

  • Common part families: Joint housings, actuator brackets, sensor mounts, and precision shafts.
  • Critical approval expectations: Runout control, assembly fit, burr-free features, and prototype-to-pilot transfer.
  • Matching process routes: Swiss CNC, 5-Axis CNC, Injection Molding.

Automotive and EV Systems

  • Common part families: EV sensor housings, connector pins, and fluid-management components.
  • Critical approval expectations: IATF 16949-aligned workflow, PPAP Level 1-3, and high-volume consistency.
  • Matching process routes: Injection Molding, Swiss CNC Machining.

Electronics and Components

  • Common part families: Connector pins, compact housings, and assembly-ready components.
  • Critical approval expectations: Burr control on small features, cosmetic surface quality, and material certs.
  • Matching process routes: Swiss CNC, Injection Molding.
SUPPORTING ROUTES

Supporting Routes for Prototype, Tooling, and Post-Process Requirements

These routes are selected when the program requires early sample validation, export tooling readiness, post-process completion, or low-volume prototype evidence. They are used as support processes and do not replace the primary routing decision for injection molding, 5-axis CNC, or Swiss CNC.

Export Mold Production and Rapid Tooling

Used when molded-part programs require early sample validation, overseas mold delivery, or bridge tooling before hardened production release.

Export mold production for overseas shipment and HASCO compatibility

Export Mold Production

Used for programs requiring mold trial approval, export shipment, and compatibility with standard systems such as DME or HASCO for overseas production.

View export molds
Rapid tooling and aluminum molds for pilot run validation

Rapid Tooling

Best suited for pilot runs and early validation before the release of a hardened steel production mold, reducing initial tooling risk.

View rapid tooling

Secondary Operations & Assembly

Operations for programs requiring post-molding, post-machining, or fabricated components to complete the final assembly route.

Secondary operations including surface treatment and mechanical sub-assembly

Secondary Operations

Delivering finished parts with required plating, heat treatment, surface quality, or mechanical sub-assembly status for ready-to-use components.

View secondary operations
Sheet metal support for brackets and enclosure parts

Sheet Metal Fabrication

Supplying fabricated brackets, covers, or enclosures that support the same program build cycle, ensuring integrated component delivery.

View sheet metal

Prototype Support Before Production

Used when teams need concept models, appearance samples, or low-volume parts before the primary precision production route is released.

SLA and SLS 3D printing for early geometry checks

3D Printing

Dedicated to early geometry validation and concept checks before committing to CNC machining or tooling release schedules.

View 3D printing
Vacuum casting for low-volume appearance and fit prototypes

Vacuum Casting

Supplying low-volume prototype parts for appearance, assembly fit, and pre-tooling evaluation with production-like properties.

View vacuum casting
ENGINEER-REVIEWED RFQ SUBMISSION

Upload CAD or Drawings for RFQ and Engineering Review

Send your 3D CAD models, 2D drawings, CTQ requirements, material grade, and annual volume. Our engineers will review process fit, tolerance feasibility, and the required validation package for injection molding, 5-axis CNC, or Swiss CNC programs.

Review Output: Typically covers process-fit screening, tolerance risk assessment, and recommended inspection protocols (FAI, PPAP, or CMM planning).

Include 3D CAD (STEP/IGES) and 2D PDF drawings to start the engineering review without delay.
Upload CAD for Engineering Review
NDA-supported request handling. Direct review by CNC and mold engineers.
