Part-Level Injection Molding DFM Guide

Injection Molding Design Guide: Practical DFM Rules

Design injection molded plastic parts around manufacturability before detailed mold engineering begins. This guide covers the part-level DFM decisions that most affect moldability: wall thickness, draft, ribs, bosses, undercuts, release direction, parting-line awareness, gate access, cosmetic zones and tolerance intent.

Kevin Liu

Reviewed by Kevin Liu

VP of Tooling | 20+ Years in Automotive & Medical Molds

“Proper wall thickness and draft are fundamental to stable molding and repeatable part quality.”

Review an Actual CAD Part When Detailed Mold Decisions Begin
Guide Scope

What This Guide Covers

Use this page to screen part-level DFM risk while the CAD can still be changed efficiently.

Covered in This Guide

Wall thickness and transitions, draft and texture allowance, ribs and bosses, radii, undercuts, release direction, parting-line awareness, gate access, cosmetic zones, datum strategy and tolerance intent.

Handled in Specialist Engineering Guides

Detailed gate selection, venting, cooling, ejection, mold steel, mold architecture, Moldflow, mold manufacturing and T0/T1/T2 validation are handled separately after the part-level DFM direction is established.

Starting-reference note: Dimensional ranges and design ratios in this guide are practical starting points, not universal pass/fail limits. Final values should follow the actual resin grade, geometry, texture, cosmetic requirements, CTQs and supplier validation.

Part Design Quick Reference

Injection Molding Design Quick Reference

Use this table as an early part-level DFM screen. The values below are starting references for identifying geometry that deserves review before detailed mold engineering.

Design Feature Practical Starting Point Why It Matters
Wall Thickness Keep nominal walls reasonably uniform where function allows. Many common engineering-plastic parts start around 1–3 mm; confirm against resin, flow length and stiffness. Uneven mass increases sink, differential shrinkage, warpage and cooling variation.
Thickness Transitions Use gradual transitions or coring instead of abrupt thick-to-thin changes and isolated heavy sections. Sudden mass changes create local shrinkage, sink and dimensional distortion.
Draft & Texture About 1° is a common starting reference for many smooth surfaces; deeper or textured features usually need more. Too little draft increases drag, scuffing, ejection force and tool wear.
Ribs & Bosses Rib bases commonly start around 40–60% of the adjoining nominal wall. Core heavy bosses and intersections. Excess local mass creates sink, hot spots and uneven shrinkage.
Undercuts & Release Direction Set the primary mold-open direction early. Remove non-functional undercuts and flag unavoidable side-action features. Late undercut discovery increases mold complexity, cost and maintenance.
Parting Line & Cosmetic Zones Mark A-surfaces, sealing areas and critical assembly edges before the parting-line direction is finalized. Parting location affects witness lines, flash risk and cosmetic acceptance.
Gate Access Preserve practical melt-entry zones away from critical cosmetic, sealing and high-stress areas. Final gate type belongs to mold engineering. Restricted access can worsen gate vestige, weld-line and filling risk.
Tolerance, Datum & CTQ Tighten only dimensions that affect function. Define functional datums and CTQs clearly. Over-tolerancing increases tool correction, inspection effort and process sensitivity.

Starting-reference note: Final values depend on resin grade, geometry, texture, cosmetics and CTQs. Gate type, venting, cooling, ejection, mold steel, architecture and CAE/Moldflow belong to detailed mold engineering.

Part-Level DFM Rule

Wall Thickness & Thickness Transitions

Wall thickness controls how a molded part fills, cools and shrinks. Aim for predictable material distribution: keep nominal walls reasonably uniform, avoid isolated heavy sections, and make unavoidable thickness changes gradual.

Design the Wall Before Solving the Mold

For many engineering-plastic parts, 1.0–3.0 mm is a useful early reference, not a universal target. Final wall thickness depends on resin grade, flow length, stiffness, cosmetics and geometry.

Core DFM principle

Uniformity matters more than forcing one thickness everywhere. A local mass that is much thicker than the surrounding wall cools and shrinks differently, increasing sink and distortion risk.

Thickness Transitions

Use a taper, radius or other smooth transition where wall thickness changes. Avoid abrupt thick-to-thin steps when the geometry can be softened.

Local Mass

Core heavy bosses and intersections where practical. At this stage, the objective is to avoid hidden mass behind cosmetic or dimensional-critical surfaces.

Material Starting References

These ranges are early design references only; confirm the final wall against the exact resin grade and project requirements.

Material Family Typical Starting Range Design Consideration
PC / ABS Approx. 1.5–3.0 mm Watch heavy cosmetic sections and abrupt mass changes.
PA / PA-GF Approx. 1.0–3.0 mm Fiber-filled grades can be sensitive to directional shrinkage and warpage.
PP Approx. 1.0–3.5 mm Flow may allow thinner walls, but shrinkage and stiffness still control the design.
POM Approx. 1.0–3.0 mm Avoid unnecessary heavy sections and confirm shrinkage for the exact grade.

Need a deeper wall-uniformity review? Large flat surfaces, long flow lengths, glass-filled materials or tight flatness requirements may need more detailed analysis. See the Uniform Wall Thickness in Injection Molding guide for local mass, sink risk and transition details.

Part-Level DFM Rule

Draft, Texture, Ribs & Bosses

Draft controls release, while ribs and bosses add stiffness and assembly function. Design them together with the pull direction and local wall mass so the part can release cleanly without creating avoidable sink, drag or distortion.

Draft Angle & Surface Texture

For many smooth molded surfaces, about 1° is a useful starting reference. Required draft increases with feature depth, draw length, texture, resin and release conditions.

Texture adds mechanical engagement with the mold surface, so deeper grain generally needs more clearance to reduce drag, scuffing and sticking.

Surface Condition Starting Reference Design Consideration
Smooth / Polished Approx. 1° Common early target for straightforward release.
Light Texture Approx. 1.5–2° Extra clearance helps reduce surface drag.
Medium Texture Approx. 2–3° Confirm against the actual texture specification.
Heavy / Deep Grain 3°+ may be required Final draft depends on grain depth, resin and release geometry.

Starting references only. Deep walls, internal ribs, glass-filled materials and long core-side contact can require more draft than a simple exterior wall.

Ribs & Bosses Without Excess Local Mass

Ribs and bosses should provide stiffness, fastening or assembly function without creating thick material concentrations. A rib base around 40–60% of the adjoining nominal wall is a useful starting reference for many molded parts, subject to resin, depth, stiffness and cosmetic requirements.

Rib Thickness

Avoid making the rib root as thick as the main wall by default; excess mass increases sink and cooling time.

Rib Draft

Draft rib sidewalls in the release direction. Deeper or textured ribs require closer release review.

Boss Coring

Core heavy bosses where practical instead of leaving a thick solid base around fastening features.

Boss Support

Use ribs or gusset-like support for stiffness rather than simply thickening the boss-wall intersection.

Escalate when release risk becomes geometry-specific. Deep internal ribs, demanding textures or long core-side contact should receive a dedicated review before mold design is frozen.

Internal Rib Draft & Release Risk Surface Texture & Finish Guide
Part-Level DFM Rule

Undercuts & Release Direction

Establish the primary mold-open direction early. Any feature that cannot clear in that direction is an undercut and should be reviewed while the CAD can still be changed—before a slider, lifter or other side action becomes part of the mold concept.

Start With the Primary Pull Direction

Holes, hooks, clips, windows and side-facing features should be checked against one clear release direction. An undercut may be functional, but it should justify the secondary motion it adds to the tool.

Core DFM principle

Simplify the plastic part before designing the side action. First ask whether the undercut can be removed, opened or repositioned so the geometry releases naturally.

Remove

Eliminate undercuts that do not support function, sealing or assembly.

Open / Reposition

Change closed or side-facing geometry so it clears with the main pull direction.

Keep When Functional

If essential, define the secondary release direction before tool design.

Undercut Decision Path

Clears the Primary Pull

Keep the simple release path and confirm suitable draft.

Can Be Redesigned

Modify the CAD now and avoid unnecessary moving tool components.

Functional Undercut Must Remain

Preserve the required release direction and enough surrounding geometry for the tooling concept.

Once a side action is required, the review changes. Effective release distance, slider/lifter travel, dynamic interference, reset, stops and retention belong in the Injection Mold Side-Action Review Checklist .

Part-Level DFM Rule

Parting-Line Planning & Cosmetic Zones

Parting-line location affects more than mold construction. It can leave visible witness lines, create flash-sensitive edges and influence sealing or assembly interfaces. Define the product's cosmetic and functional zones before the mold split is finalized.

Plan the Mold Split Around the Finished Part

The preferred parting line should allow practical mold opening while keeping unavoidable split marks away from the product's most sensitive surfaces. Product appearance and function therefore need to be defined before detailed mold-split engineering begins.

Injection molding parting-line planning for cosmetic and functional zones
Plan the mold split around A-surfaces, sealing interfaces and critical assembly edges while preserving a practical mold-open direction.

During part design, mark the areas that customers see, surfaces used for sealing, mating edges and other geometry where flash or mismatch could affect function. This gives the mold designer clear priorities instead of forcing those decisions after the tooling concept is already fixed.

Core DFM principle

Define protected surfaces early. If a parting line cannot be avoided, agree on its acceptable location and appearance before steel is cut.

The objective is not to eliminate every visible split line. Some are unavoidable. The objective is to place them deliberately, where their cosmetic or functional consequence is understood and acceptable.

Protect the Areas That Matter Most

Classify the part before deciding where a mold split is acceptable.

Cosmetic

A-Surface / Customer-Visible Area

Keep prominent witness lines and flash-sensitive transitions away from highly visible surfaces where practical.

Functional

Sealing Surface

Avoid unnecessary split transitions through a functional seal where flash or mismatch could affect performance.

Assembly

Mating & Precision Interface

Protect clips, sliding interfaces and precision fits from parting mismatch or local flash that could change assembly clearance.

Preferred Split Area

Hidden / Low-Sensitivity Surface

Where geometry allows, move unavoidable split lines toward areas concealed after assembly or with lower cosmetic sensitivity.

If the Parting Line Cannot Be Hidden

Define the acceptable witness-line position, flash expectation and cosmetic standard before tooling is released. An unavoidable line is manageable when its acceptance criteria are agreed in advance.

Detailed Mold-Split Engineering Comes Later

This section defines the product-side requirements for parting-line planning. Detailed shutoff construction, insert strategy, side-action coordination and mold maintainability belong to the tooling-design stage. When several tooling constraints must be balanced together, continue with the Injection Mold Design Decision Guide .

Part-Level DFM Rule

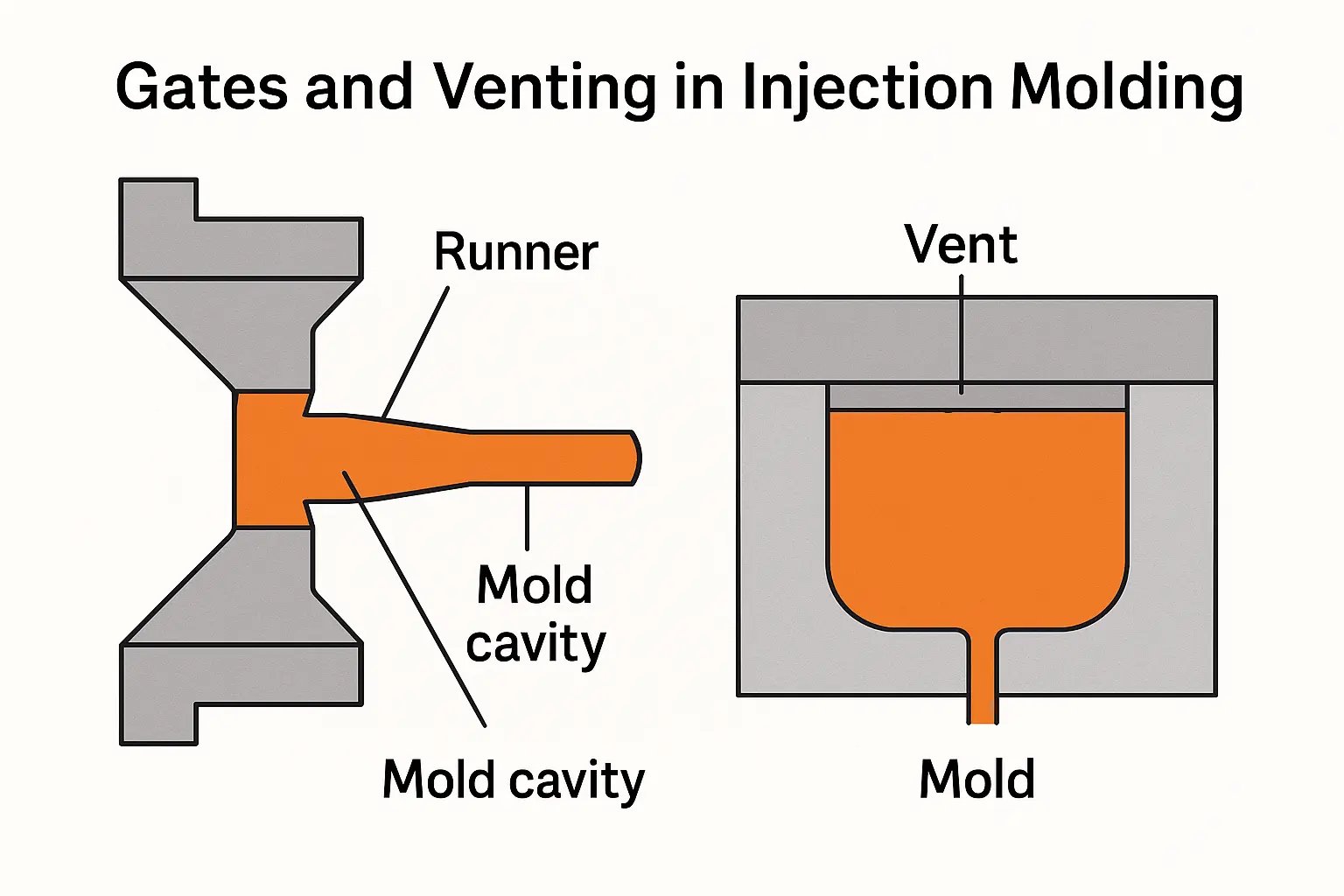

Gate Access & Part-Design Constraints

Product geometry should leave at least one practical melt-entry route without forcing the gate onto a critical cosmetic, sealing, assembly or high-stress region. At this stage, preserve workable gate options rather than locking the final gate type.

Preserve a Realistic Gate Zone

Every molded part needs a practical location where resin can enter the cavity. If every candidate area is blocked by appearance requirements, sealing functions or difficult geometry, detailed mold engineering may be forced into a higher-risk solution.

Injection molding gate access and part-design constraints
Preserve realistic melt-entry options while protecting cosmetic, sealing and functional zones. Final gate and runner design comes later.

During early DFM, define both preferred gate zones and no-gate zones. This protects critical product surfaces while leaving the mold engineer enough freedom to balance filling, cosmetics and manufacturability.

Core DFM principle

Decide where gate access is acceptable before deciding which gate type to use. Protect sensitive surfaces, but avoid specifying “no gate marks anywhere” without leaving a realistic alternative.

Gate access also affects where flow fronts travel and meet. Holes, windows, ribs and bosses can split the melt, so important cosmetic or highly loaded regions should be identified before the final gating strategy is selected.

Define Preferred and Protected Gate Zones

Give mold engineering clear product-side constraints without prematurely fixing the final tooling solution.

Protect

Cosmetic A-Surfaces

Avoid visible gate vestige, blush or local appearance change on customer-facing surfaces where practical.

Protect

Sealing & Mating Interfaces

Keep gate witness and trimming effects away from surfaces that must seal, slide, locate or mate consistently.

Review

High-Stress Features

Check clips, hinges, loaded bosses and similar regions where flow behavior or weld lines could affect the load path.

Prefer

Hidden / Trim-Tolerant Areas

Preserve access on less visible surfaces where a controlled gate vestige can be accepted.

Weld-Line Awareness

Holes and divided flow paths can cause melt fronts to rejoin. Identify zones where a weld line would be cosmetically or structurally undesirable; confirm its final location later through mold engineering and, when justified, CAE/Moldflow.

Final Gate Type & Runner Design Come Later

Edge, pin, tunnel, fan, tab and valve-gate selection—as well as runner layout, sizing, degating and hot-runner decisions—belong to detailed mold engineering.

Review Gate Type Selection
Part-Level DFM Rule

Tolerance, Datum & CTQ Planning

Control molded dimensions according to product function rather than applying the tightest tolerance everywhere. Define functional datums and CTQs early so tooling, molding and inspection can focus on the features that actually affect fit, sealing and performance.

Tighten Only the Dimensions That Need It

Molded dimensions respond to resin shrinkage, geometry, cooling and process variation. A feature that looks simple in CAD may therefore move with the surrounding part rather than behave as an isolated dimension.

Injection molding tolerance, datum and CTQ planning
Align molded tolerances with functional datums and CTQs instead of treating every drawing dimension as equally critical.

The drawing should separate dimensions that control real product function from ordinary geometry. Assembly, sealing, alignment and critical mating conditions deserve more attention than dimensions that carry no meaningful functional consequence.

Core DFM principle

Define the functional datum structure first, identify the CTQs, and then assign tolerance according to function. Precision should follow design intent—not be applied uniformly across the drawing.

This approach also makes later mold correction and inspection more meaningful because dimensional effort is concentrated on the features that actually control product performance.

Build the Dimensioning Strategy Around Function

Four part-design decisions should be clear before detailed tooling begins.

Locate

Functional Datums

Reference surfaces and features that control how the part locates, assembles or functions in the real product.

Control

CTQ Dimensions

Clearly identify sealing, mating, alignment and other dimensions whose variation directly affects performance.

Relax

Non-Critical Dimensions

Use practical manufacturing tolerance where variation does not affect fit, function, safety or required appearance.

Relate

Datum-to-CTQ Relationship

Dimension critical features from meaningful functional datums, not convenient but unrelated CAD references.

Critical Interface

Sealing, precision mating and performance-critical features should be treated as CTQs and reviewed for molded feasibility.

Assembly & Fit

Control dimensions that drive clips, mating features, boss alignment and assembly stack-up from functional datums.

General Geometry

Use realistic manufacturing tolerance unless the feature directly affects function or defined cosmetic acceptance.

Avoid Blanket Tight Tolerances

Tightening broad groups of dimensions can increase tool correction, inspection effort and process sensitivity without improving the product. Ask which dimensions truly control fit, sealing, alignment or performance.

Detailed Capability Validation Comes Later

Numerical molding tolerances, capability targets, Cpk, Gage R&R, measurement strategy and production validation belong to specialist tolerance and quality planning.

Review Tolerance Standards
Engineering Escalation

When Detailed Mold Engineering Is Required

Basic part-design rules are enough for many early DFM decisions, but some combinations of geometry, material, cosmetics and dimensional requirements cannot be resolved reliably with rules of thumb alone. These conditions should trigger a deeper tooling or simulation review before the mold design is frozen.

Five Common Escalation Triggers

Detailed engineering is most useful when several molding risks interact or when a wrong early assumption would be expensive to correct after steel cut.

Thermal / Cooling Risk

Heavy sections, uneven material mass, deep cores or large flat surfaces create hot spots or asymmetric cooling that may drive cycle time and warpage.

Release / Ejection Risk

Deep ribs, textured core-side surfaces, large contact areas or limited ejector-friendly regions can make clean release difficult even when nominal draft appears acceptable.

Flow / Warpage Risk

Long flow paths, thin walls, glass-filled resins, multiple possible gate locations or sensitive A-surfaces may require simulation instead of relying only on general design rules.

Tool Architecture Risk

Several side actions, difficult shutoffs, demanding cosmetics or conflicting gate and release requirements may require an early mold-concept decision.

Material / Tool-Life Risk

High shot volume, abrasive or glass-filled materials, corrosive resins and demanding polish requirements can affect steel, insert and maintenance decisions. These are tooling decisions, not part-level geometry rules.

Escalate the Decision—Do Not Duplicate the Specialist Review

This guide only identifies when part-level DFM should hand off to deeper mold engineering. Cooling-circuit layout, ejection layout, steel selection, mold architecture and simulation setup should be reviewed in their dedicated engineering pages rather than recreated here.

Injection Mold Design Decision Guide Cooling System Design Moldflow Analysis
CAD Self-Check

Part-Level Injection Molding DFM Checklist

Before detailed mold design begins, run a short review of the plastic part itself. If several items below remain unresolved, the CAD should receive a more detailed DFM review before gate, cooling, ejection and mold architecture are frozen.

Wall & Local Mass

Are nominal walls reasonably consistent, with heavy intersections and abrupt thickness changes minimized?

Draft & Texture

Does every release surface have realistic draft for its depth, texture and expected molding material?

Ribs & Bosses

Are structural features proportioned without creating unnecessary thick mass behind cosmetic or dimensional-critical surfaces?

Undercuts & Release

Can the part release in a clear primary direction, and are any unavoidable secondary release directions already identified?

Parting & Cosmetics

Are A-surfaces, sealing interfaces and other witness-line-sensitive areas clearly defined before the mold split is chosen?

Gate Access

Does the geometry leave realistic melt-entry options without forcing the gate onto a protected functional or cosmetic zone?

Datums & CTQs

Are functional datums and truly critical dimensions identified without applying unnecessarily tight tolerances everywhere?

Engineering Escalation

Do flow length, warpage, cooling, release or tooling risks indicate that simulation or detailed mold engineering is required?

Engineering Handoff

Specialist Injection Mold Engineering Guides

Once the part-level DFM direction is clear, use the unresolved risk to choose the next engineering review. These specialist pages own the detailed tooling decisions that should not be duplicated inside this general part-design guide.

Mold Concept

Injection Mold Design Decision Guide

Use when several open risks—gate, cooling, shrinkage, parting line or CTQs—must be prioritised before the tooling concept is frozen.

Choose the engineering review path

Slider / Lifter

Side-Action Review Checklist

Use when an unavoidable undercut requires slider or lifter travel, interference review, release distance, reset or retention validation.

Review side-action safety

Gating

Gate Type Selection

Use after acceptable gate zones are defined and the project needs a decision on edge, pin, tunnel, fan, valve or other gate strategies.

Compare gate strategies

Thermal Control

Injection Mold Cooling Design

Use when hot spots, asymmetric cooling, long cores or flatness risk require detailed thermal-layout and cooling-circuit engineering.

Review cooling strategy

CAE / Simulation

Moldflow Analysis Before Steel Cut

Use when fill balance, weld-line position, pressure, cooling or warpage risk cannot be resolved confidently with DFM rules alone.

Review Moldflow triggers

Dimensional Control

Injection Molding Tolerance Standards

Use when CTQs require detailed tolerance classes, conditioning, measurement methods, capability targets or production acceptance rules.

Review tolerance feasibility

Tool Material

Injection Mold Steel Selection Guide

Use when production life, abrasive fillers, corrosion, polish requirements or local wear change the appropriate tooling material strategy.

Review mold steel selection

Use these pages by unresolved engineering risk—not as a reading checklist. A simple part may need none of them; a high-risk part may require several reviews before steel cut. The purpose of this section is to route each technical question to its correct owner rather than repeat the same answer across multiple pages.

Design FAQ

Injection Molding Design FAQ

These answers cover common part-design questions that should be resolved before detailed mold engineering begins. Final decisions still depend on the actual resin, geometry, cosmetic requirements and CTQs.

How uniform should wall thickness be for injection molding?

Keep nominal wall thickness reasonably uniform wherever the product function allows. More important than hitting one universal thickness value is avoiding abrupt changes and isolated heavy sections. Where thickness must change, use gradual transitions or coring to reduce sink, uneven cooling and differential shrinkage.

How much draft angle should an injection molded part have?

Around 1° is a common starting reference for many smooth surfaces, but it is not a universal minimum. Deep features, internal ribs, textured surfaces and release-sensitive materials usually require more draft. Final draft should follow feature depth, texture specification, resin and actual release conditions.

Are undercuts always bad in injection molding design?

No. Functional undercuts may be necessary for clips, hooks or assembly features. The DFM objective is to remove unnecessary undercuts and establish the release direction early. If an undercut must remain, identify it before mold design so the required side-action concept can be reviewed properly.

Should the product designer specify the injection molding gate location?

Usually the product designer should define preferred and prohibited gate zones rather than lock the final gate type and position. Protect cosmetic, sealing, mating and high-stress areas while leaving realistic melt-entry options. Detailed gate selection should then be completed during mold engineering.

How tight can injection molding tolerances be?

There is no single tolerance that applies to every molded feature. Feasibility depends on resin, dimension size, geometry, shrinkage, datum structure and measurement conditions. Apply tighter control to functional CTQs and use practical manufacturing tolerances for dimensions that do not affect fit, sealing, alignment or product performance.

When should Moldflow or injection molding CAE be used?

Consider CAE when simple DFM rules cannot confidently resolve the risk—for example with long flow paths, thin walls, large flat parts, glass-filled resins, multiple gate options, sensitive weld-line locations or tight warpage requirements. Simulation should support a specific engineering decision rather than be treated as mandatory for every part.

Scope note: Questions about hot-runner economics, multi-cavity balancing, vent sizing, resin drying, flash troubleshooting, process settings, tool trials and production capability belong to their respective tooling, process or validation guides rather than this part-design FAQ.

Partner With SPI

Ready to Review Your Injection Molded Part?

Send us your 3D CAD, drawing and key product requirements. Our engineering team can review the part-level DFM risks discussed in this guide and identify which items should be resolved before detailed mold design begins.

Part Geometry Wall, draft, ribs, bosses and undercuts
Functional Intent Cosmetics, gate access, datums and CTQs
Engineering Handoff Flag risks needing deeper mold review
Request a DFM Review Request an Injection Molding Quote

STEP / IGES files, 2D drawings and key screenshots can be submitted with your project requirements. For confidential projects, share only the information required for the initial feasibility review.

SPI injection molding and mold manufacturing facility in Dongguan China
Dongguan Manufacturing Facility On-Site Audits & Factory Visits Welcome

Injection molding, export mold production and engineering support for overseas OEM projects from DFM through production.

Injection Molding Design Guide

Image Gallery

A quick visual index of core injection mold design images and examples—wall thickness, gating, cooling, defects, and cost trade-offs. Open any image in a new tab for full resolution and use them as reference slides in your own design reviews.

Sustainable injection mold design for smart factory

Sustainable injection mold design

Smart factory readiness

Open
Design for injection molding services

Design for injection molding services

DFM-focused overview

Open
Injection mold design best practices

Injection mold design best practices

Rules & guardrails

Open
Injection molding cooling channel design

Cooling channel design

Cycle time & warpage control

Open
Injection molding defect prevention in part design

Defect prevention in part design

Sink, weld lines, flash, burns

Open
Injection molding design cost reduction strategies

Cost reduction strategies

Tooling + unit economics

Open
Injection molding design guidelines

Injection molding design guidelines

Practical ranges & checks

Open
Injection molding gate and runner system design

Gate & runner system design

Fill balance & cosmetics

Open
Injection molding part geometry optimization

Part geometry optimization

Strength, warp, sink control

Open
Mold design and tooling for injection molding

Mold design & tooling

Architecture & build intent

Open
Plastic part design for injection molding

Plastic part design

DFM-ready geometry

Open
Rapid tooling for injection molding mold design

Rapid tooling

Fast iteration & validation

Open
